***The Following is a Modified Excerpt from "Iranian Military Capability 2011"***

IRGC Fateh-110 on HQ-2 style TEL (Fars News)

The Fateh-110 is a refined TBM, being a guided missile rather then a rocket like the Zelzal or Nazeat. The system emerged in May 2001 with full-scale production beginning at the earliest in late-2002 or 2003. There are three versions, the -110, and the -110A, and a yet unnamed third generation that was unveiled in August 2010. The program is likely directly connected with the Zelzal program as the basic dimensions between the two are nearly the same.

Some have asserted that it is a copy of the Chinese DF-11, but the dimensions of the two missiles make this unlikely. While the two share battlefield roles and it is plausible that the China used their experience with the DF-11 to lend assistance to Iran, there exists no concrete connection between the two projects that is apparent.

The Fateh-110(A) is mounted on a 6x6 truck similar to the Zelzal and Nazeat, though the TEL mechanism more closely resembles the SA-2 or Tondar-69 TBM (see below). Recently the missile was shown mounted on the exact same TEL as that associated with the Zelzal (1st picture under the Zelzal entry)

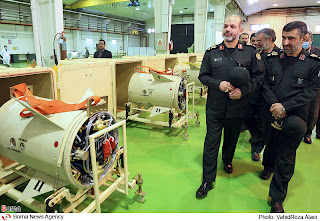

Guidance and control unit of the 3rd-gen Fateh-110 (Borna News)

The missile is externally very similar to the Zelzal, both are single-stage solid-fueled designs of the same size. Though there are several differences. First is the warhead, unlike the symmetrical warheads on the Zelzal or Nazeat, the Fateh-110(A)'s nose narrows sharply at the top. The next major difference is the configuration of the fins. The Fateh-110(A) features a set of four movable control surfaces mounted on the guidance unit just below the warhead, in addition to this there are four non-moving stabilizing fins at the rear of the missile with another set of four smaller static fins located just fore of the rear set.

The difference between the -110 and the 110A is unknown, though if the pattern of other TBM's is any indication, it relates to the size of the warhead and the corresponding range of the missile.

Gimballed gyro of 3rd-gen Fateh-110 (IRINN)

The third generation is also externally identical to the -110 though, according to DM Vahidi, it features improved accuracy and the ability to perform evasive maneuvers against ABM systems. This announcement was accompanied by a video of the impact from testing, a rarity among Iranian missile announcements; this lends at least some credence to the claim of improved accuracy. However this is by no means definitive. Video evidence suggests the missile uses a gimbaled gyro, most likely mechanical, for the INS guidance. The third generation is in production, with the first batch being delivered to the IRGC in time to coincide with Sacred Defense Week 2010. Later, during the same week, Fars News announced that the missile had a range of 300 km.

Some sources have claimed a combination of inertial and GPS guidance, however this is unconfirmed. Other sources have claimed EO terminal guidance, but this is not supported by the missiles appearance. Its poor CEP is attributable to its small control surfaces; instead of having regular jet vanes at the rear of the missile. The warhead may separate from the missile body in the terminal phase.

Specifications: Fateh-110
Configuration: Single-stage, solid fuel
Weight: 3,620 kg
Length: 8.76 m
Diameter: 616 mm
Max. Range: 250 km
Min. Range: 150 km
Warhead: 450 kg
CEP: <750 m*
Guidance: INS+??

* = at maximum range
